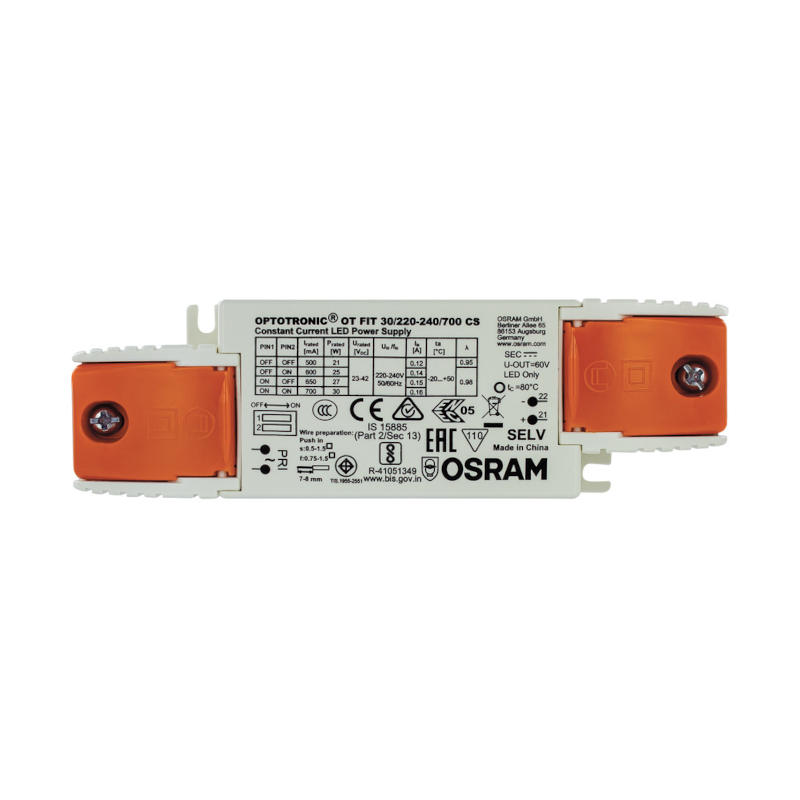

ADJUSTABLE CONSTANT CURRENT DRIVER 21-30W 500-700MA IP20 NON-DIM 23-42V OUTPUT

ADJUSTABLE CONSTANT CURRENT DRIVER 21-30W 500-700MA IP20 NON-DIM 23-42V OUTPUT

LED Constant Current Drivers are important components in LED lighting systems. They help regulate the flow of electrical current to the LED light source, ensuring that it operates at the correct voltage and current levels. This helps to maintain the LED's performance, brightness and longevity. LED drivers are also crucial in maintaining safety and reliability in LED lighting systems, as they help to prevent overloading and short-circuiting. When choosing an LED driver, it's important to consider factors such as input voltage, output current, dimming capabilities, and compatibility with the LED lights being used.

Warranty 3 years

Specifications

• Range Name Non-Dimmable
• Product Type Constant Current
• Market Segment Commercial indoor, Residential indoor
• Warranty (Years) 3
• Product Length (mm) 300
• Product Depth (mm) 50
• Product Width (mm) 20
• Product Weight (g) 900
• Placement / Application Indoor LED Lighting
• Power Consumption (W) 30
• Power Factor 0.9
• Voltage (V) 23-42
• Input Current (A) 0.135
• Input Voltage (V) 220-240VAC
• Output Current (mA) 700
• Dimming Non-Dimmable
• Protection Function Short Circuit Protection, Overload Protection, Overheat Protection
• IP Rating (Ingress Protection) IP20
• Lowest Operating Temperature (°C) -10
• Maximum Operating Temperature (°C) 35
