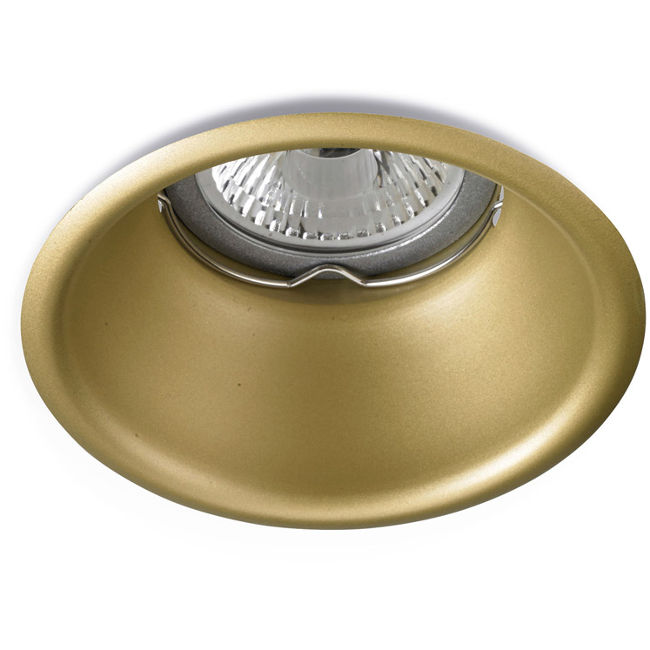

LEDSC4 DOME DOWNLIGHT DN-1600-23-00V1

DOME DOWNLIGHT - GOLD FINISH

The DOME is a round downlight designed for recessed ceiling installation. The fitting has been designed to reduce glare from the light source by the use of a dome shaped body with the light source sitting recessed into the fitting. The housing of this light fitting is made in repelled steel plate and light fixing springs in a stainless steel with high resistance to mechanical deformation. This is fixed downlight (not directable). The fitting accepts both gu10 and gu5.3 lampholders (both included).

This is an ideal lighting solution product for commercial projects.

Details

• Plastered-in dome ceiling recessed light.
• Part of the LEDS-C4 architectural range
• Designed by Josep Patsi for LEDS-C4
• It is a round downlight for recessed installation, with high visual comfort avoiding problems of dazzling.
• The housing is made in repelled steel plate and light fixing springs in stainless steel with high resistance to mechanical deformation.
• This is the fixed version (not directable / non-tilting).
• Two lampholders: GU10 and GU5.3 lampholders (both included)

• Voltage/Frequency: 230V-12V / 50-60Hz
• Lamp used: it comes with two lampholders, and it can take 1 x QR-CBC51 GU5.3 12V lamp, max 50; OR, 1 x QPAR-16 GU10 230V max 50W. Lamp needs to be ordered separately.
• It can take energy saving and dimmable LED lamps (ordered separately).
• Gear: necessary equipment not included; if used with the GU5.3 lampholder, a low voltage transformer is required.
• Manufacturer: LEDS-C4, Model number DN-1600-23-00
• Ideal for general lighting
• Finish: Gold interior dome downlight
• Fixed lamp: non-adjustable / non-tilting lamp
• Distance from the closest illuminated object: 0.5m
• Class III Electrical Rated, CE Mark
• IP Rating: IP23 rated.
• Material: steel structure
• Dimensions: 90mm diameter, 55mm depth, 140mm total depth
• Cutout: 82mm
• Ideal for ceiling up to 25mm thick.
• Weight: 0.15kg
