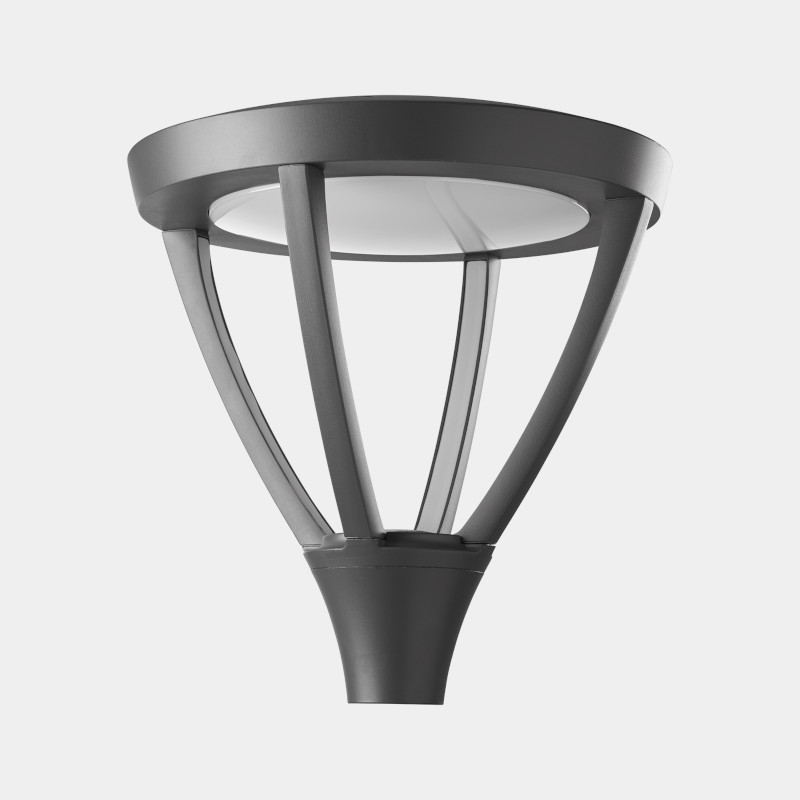

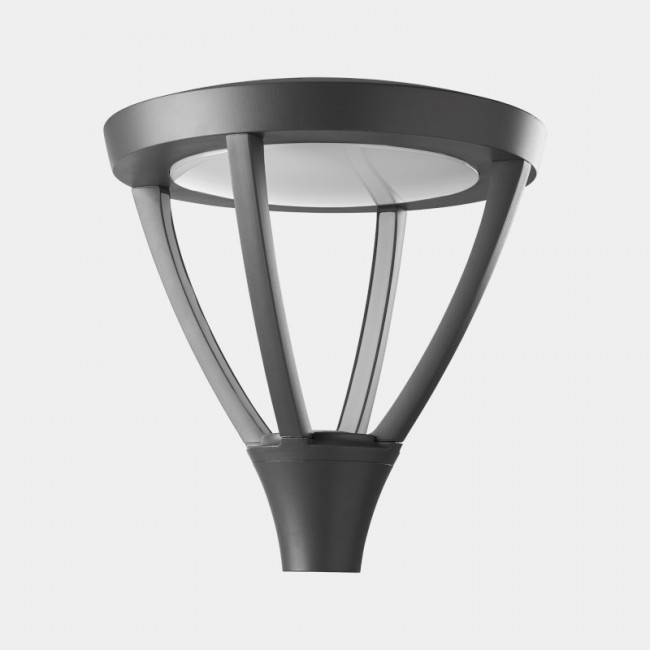

LEDSC4 Proud Symmetrical Head - 60-9913-Z5-CL

Product Name: Proud Symmetrical Head

Product Code: 60-9913-Z5-CL

Description:
The Proud Symmetrical Head by LEDSC4 is a high-performance LED luminaire designed for symmetrical lighting applications. Featuring a 40W LED light source that delivers a warm-white illumination with a colour temperature of 3000K, this fixture is ideal for urban and architectural lighting projects. The luminaire is crafted from durable aluminium with an urban grey finish, ensuring a sleek aesthetic that blends seamlessly into modern environments. It is equipped with a polycarbonate diffuser that provides a semitransparent finish, enhancing the uniformity of the light output.

Technical Specifications:

• Total Power Consumption: 44.9W
• Luminous Flux: 3110 lm
• Efficacy: 69 lm/W
• Correlated Colour Temperature (CCT): 3000K (LED warm-white)
• Beam Angle: Horizontal 131º
• Material: Aluminium (structure), Polycarbonate (diffuser)
• Finish: Urban grey (structure), Semitransparent (diffuser)
• Voltage: 100-240V, 50-60Hz
• Dimming Protocol: ON-OFF
• Power Factor: 0.90
• Ingress Protection: IP66 (dust-tight and protected against powerful water jets)
• Impact Resistance: IK10 (protection against 20 joules of impact)
• Operating Temperature: Up to 50ºC
• Lifetime: 50,000 hours (L80B20)
• Photobiological Risk: RG0 (no risk)
• CRI: 80
• MacAdam Steps: 3



Dimensions & Weight:

• Net Weight: 5.94 kg
• Packaged Weight: 7.45 kg
• Packaging Dimensions: 480mm x 480mm x 530mm



Applications:
This luminaire is suitable for a wide range of outdoor lighting applications, including pathways, public squares, and architectural highlights where consistent and symmetrical lighting is essential.

Optional Accessories:

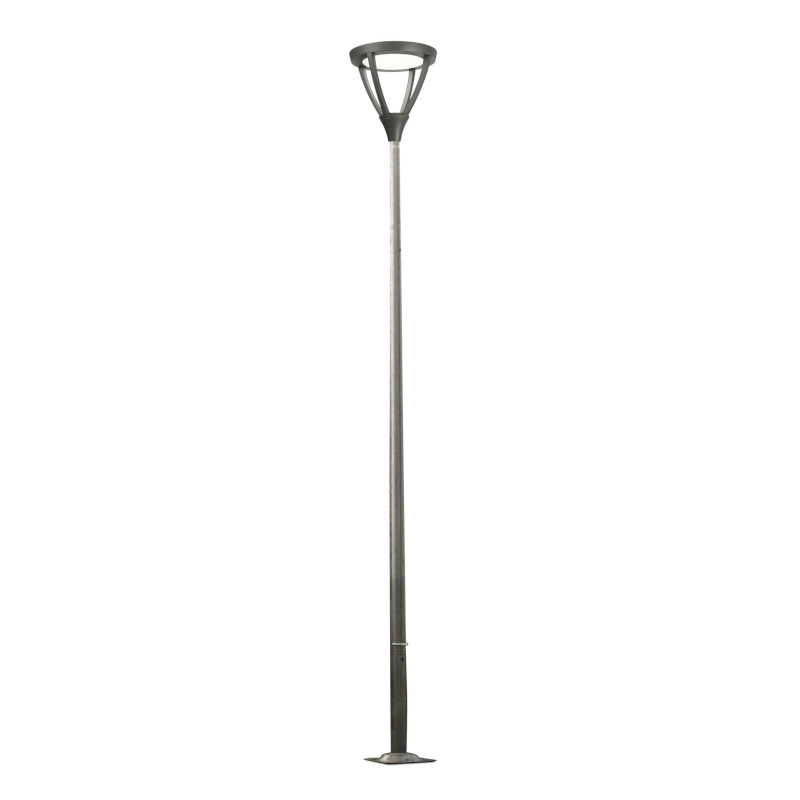

• Conical Column (81-E000-Z5-Z5): Steel structure, 300mm x 3500mm, 26.8 kg.
• Floor Mounting Bolts (71-E213-48-48): Steel, 300mm x 400mm x 300mm, 5.37 kg.
• Scratch-Protection Paint (71-E117-Z5-00): Z5 grey, 0.04 kg.



Warranty: 5 years
