Integral LED CONSTANT CURRENT DRIVER ADJUSTABLE OUTPUT 13-29W 250-600MA

Name: Integral LED CONSTANT CURRENT DRIVER ADJUSTABLE OUTPUT 13-29W 250-600MA
Brand: Integral LED
SKU: ILDRCCA070A
Price: 22.34 GBP
Availability: InStock

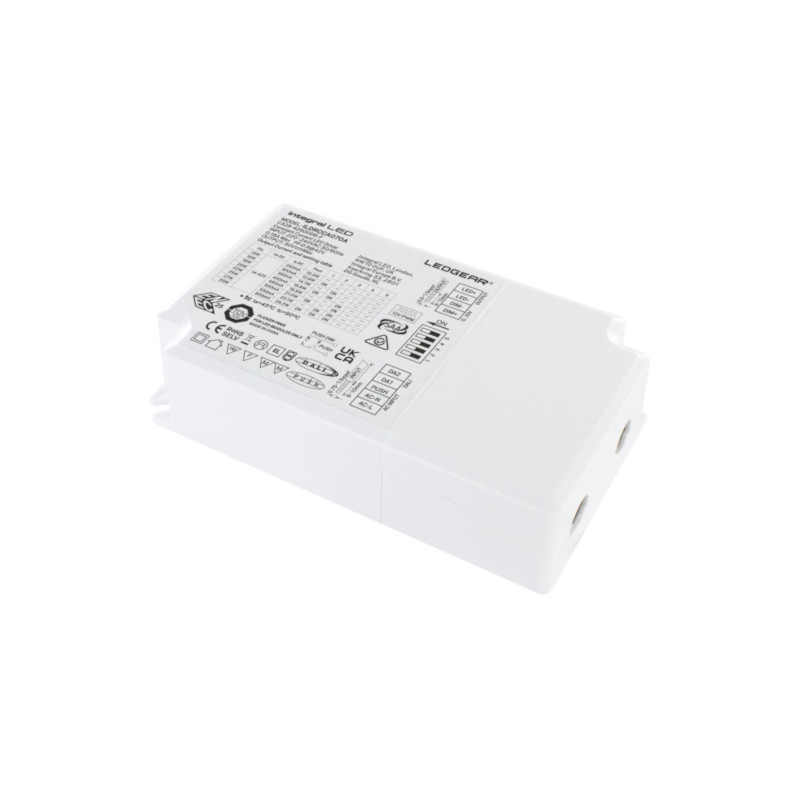

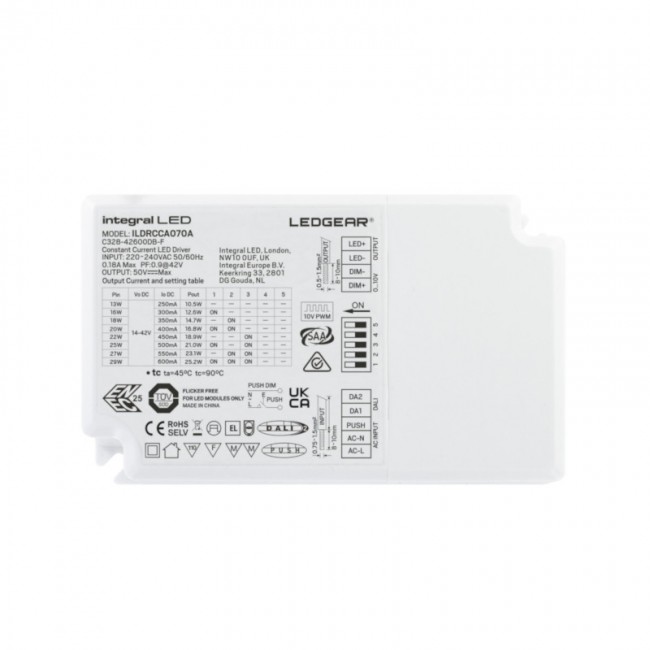

Click Image for Gallery

CONSTANT CURRENT DRIVER ADJUSTABLE OUTPUT 13-29W 250-600MA

Part Number: ILDRCCA070A

40W constant voltage LED driver operates 200-240VAC input range.

This driver features adjustable output current and is DALI, DALI2, 0 - 10V, PUSH-DIM dimmable.

Specification:

Product Length (mm) 125
Product Depth (mm) 30
Product Width (mm) 76
Product Weight (g) 185
Material Polycarbonate
Placement / Application Indoor, LED Lighting
Voltage (V) 14-42
Input Current (A) 0.18
Input Voltage (V) 220-240VAC
Output Current (mA) Adjustable
Output Voltage (V) 14-42
Dimming DALI, DALI2, 0 - 10V, PUSH-DIM
Protection Function Short Circuit protection, Overload protection, Thermal protection
EN EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2, EN61000-3-3
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 45

Integral LED

By choosing Integral LED you can rest assured that you are buying a quality product at a fair price; that has a warranty and saves money too.

When compared to conventional filament and halogen lamps, the payback with LEDs can be less than a year with 85% less electricity usage, also LED lamps can last more than 20 times longer. A win-win solution for you and the environment.

Delivery Information - Deliveries normally arrive within 1-2 days.

AOM Lighting recommends that all lighting should be installed by a registered NICEIC electrician.
