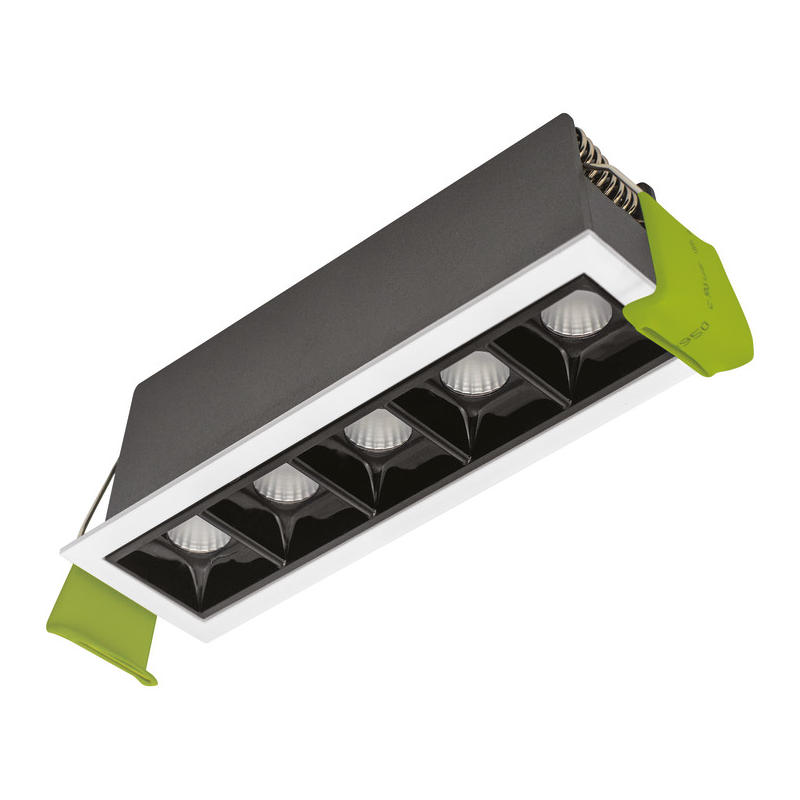

TRACELUX 10W 5 LIGHT 3000K 45MM WIDTH RECESSED LINEAR DOWNLIGHT

TRACELUX 10W 5 LIGHT 3000K 45MM WIDTH RECESSED LINEAR DOWNLIGHT

The Tracelux family of linear recessed downlights from Integral LED is a versatile lighting solution for various architectural spaces. The lights feature heavily recessed LEDs, which reduce glare and provide high color rendering index (CRI90) for vibrant colors. The single die-cast aluminum body effectively dissipates heat to ensure reliability and longevity.

The Tracelux lights can be paired with non-dimming and dimmable drivers such as DALI and 0-10V, and can also be used with Integral LED's emergency pack. To further customize the lighting to the installation, Integral LED offers a range of outer cover finishes. This makes the Tracelux family of lights an ideal choice for designers looking to bring designer lighting to their projects at an affordable price.

Requires outer covers, driver. Optional emergency kit available. See related Products below.

140MM BY 37MM CUTOUT

Warranty 5 years

Specifications

• Range Name Tracelux
• Product Body Finish Matt white
• Market Segment Accent lighting
• Fixed/Tiltable Fixed
• Warranty (Years) 5
• Product Length (mm) 147
• Product Depth (mm) 49
• Product Width (mm) 45
• Product Weight (g) 212
• Optic Clear Refractor
• Construction Die cast Aluminium heat-sink and body
• Cut Out Length (mm) 140
• Cut Out Width (mm) 37
• Bulb or Luminaire Shape Rectangle
• Luminaire Fixing Recess mounted
• Placement / Application Indoor, General Lighting
• Spot Type SMD
• Luminous Flux in Lumens (lm) 760
• Luminous efficacy (lm/W) 76
• Correlated Colour Temperature (CCT) (K) 3000
• Colour Temperature 3000K - Warm White
• Colour Temperature Name Warm White
• Beam Angle 30
• Colour Rendering Index (CRI) 90
• Integrated Light Source Yes
• LED Type Surface mounted device (SMD)
• Lifetime (hours) 50000
• Lumens in Emergency mode (lm) 76
• Power Consumption (W) 10
• Amperage (mA) 600
• Input Voltage (V) 15
• Driver Included No
• Electric Current DC
• EN Yes
• LVD Certified  Yes
• IP Rating (Ingress Protection) IP20
• Lowest Operating Temperature (°C) -20
• Maximum Operating Temperature (°C) 40
