LEDSC4 17.3W MAX UPLIGHT SQUARE TRIM IP66-IP67 LED GROUND LIGHT AT11-18

Name: LEDSC4 17.3W MAX UPLIGHT SQUARE TRIM IP66-IP67 LED GROUND LIGHT AT11-18
Brand: LEDSC4 Lighting
SKU: AT11-18
Price: 283.36 GBP

Sold Out

Click Image for Gallery

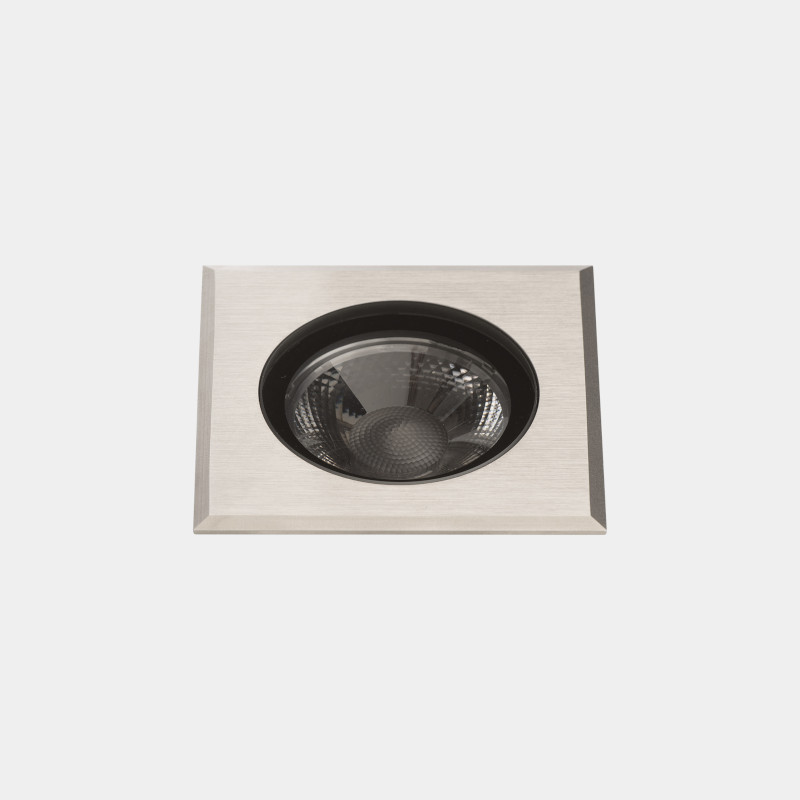

MAX UPLIGHT SQUARE TRIM IP66-IP67 17.3W LED GROUND LIGHT

The Max family's recessed downlight is available in three formats: square, round, and deep and round. These formats enable it to offer a solution to all your lighting needs in places like terraces, office porches, or decks in hotels and residences. It’s available in three different temperatures (2700K, 3000K and 4000K) and different beam angles, allowing it to adapt to all types of projects. You can also fit it with a honeycomb and with scattered, oval or square light filters.

Eco-design

Its design responds to an ecological parameter thanks to the use of replaceable LED modules. Max has a high visual comfort marked by a UGR <12 and offers a high colour rendering with a CRI90.

Wide range of accessories

The collection has a wide range of accessories such as elliptical diffuser, square diffuser, honeycomb panel and halo diffuser.

Warranty 5 years

Specification:

Power (W) : 17.3W
Total power consumption of light (W) : 17.3W
Structure material : Stainless steel AISI 316 / Aluminium
Structure finish : AISI 316 stainless steel
Diffuser material : Glass
Diffuser finish : Transparent
Equipment necessary but not included :
Voltage / frequency : 36V/max.500mA
Useful life : 50.000h L80B20
Warranty : 5 Years
Resistant to marine environments : Yes
Easily recycled luminaire
Net weight (kg): 0.9
IP66-IP67
IK10
Beam angle - Choice of 21, 31 and 40° degree.
Metres of cable included: 1 meter
Cut-Out 60mm

Product Codes & Lumen reference for beam angles.

AT11-18V9F1BBCA - 17.3W 2700K 1565lm - Medium beam

AT11-18V9M3BBCA - 17.3W 2700K 1902lm - Medium beam

AT11-18V9S3BBCA - 17.3W 2700K 1844lm - Medium beam

AT11-18W9F1BBCA - 17.3W 3000K 1684lm - Medium beam

AT11-18W9M3BBCA - 17.3W 3000K 2047lm - Medium beam

AT11-18W9S3BBCA - 17.3W 3000K 1985lm - Medium beam

AT11-18X9F1BBCA - 17.3W 4000K 1803lm - Medium beam

AT11-18X9M3BBCA - 17.3W 4000K 2191lm - Medium beam

AT11-18X9S3BBCA - 17.3W 4000K 2126lm - Medium beam

LED DRIVERS

IP67/IP68 On-Off / DALI / 0-10V Max 1 Units

IP20 On-Off / DALI / 0-10V Max 2 Units

LEDSC4

A Spanish company with over 40 years' experience in design, development and manufacture of lighting solutions.

With over 3,100 lighting product LEDSC4’s seven ranges undergo continuous redevelopment in order to suit a wide variety of needs and lighting styles: designer lighting for interiors – modern, traditional or classic - commercial, architectural or outdoor lighting (private spaces) and urban lighting (public outdoor spaces).

View the whole Leds-C4 range.

UK Delivery Information - Goods despatched within 24 - 48 hours of order placement and normally arrive within 10 - 14 working days.

Free UK Shipping

Free on all orders over £150 ex VAT.

DELIVERY

10 - 14 Working Days UK Mainland.

AOM Lighting recommends that all lighting should be installed by a registered NICEIC electrician.

Product Code: AT11-18
Availability: Sold Out

£283.36
Ex Tax: £236.13

Available Options

Select Beam Angle

S3 - Medium 21 Degrees

M3 - Medium 31 Degrees

F1 - Medium 40 Degrees

Select Colour Temperature

V9 - 17.3W 2700K Warm White

W9 - 17.3W 3000K Warm White

X9 - 17.3W 4000K Neutral-White
