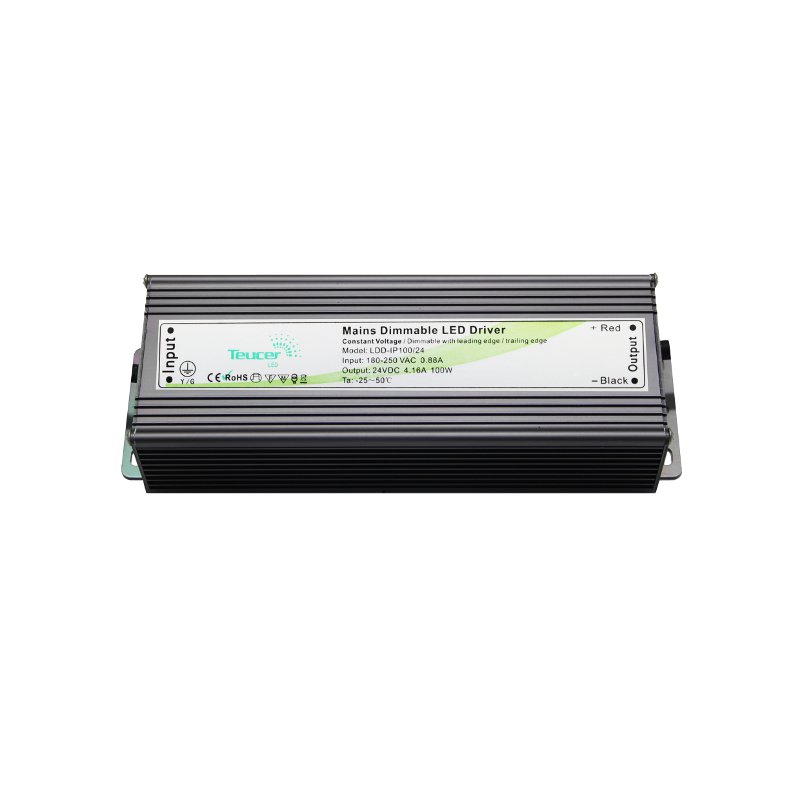

TEUCER 100w IP66 Mains Dimmable TRIAC LED Driver
TEUCER 100w Mains Dimmable TRIAC LED Driver
IP66, PFM Dimming
These Mains Dimmable LED Drivers can be used in conjunction with most Leading/Trailing edge dimmers and automated mains lighting systems.
The Teucer LED 100 watts dimmable constant voltage LED driver enables you to dim your LED strip via leading/trailing edge dimmers.
Please ensure a minimum 10% ( 10w) load to achieve optimum dimming of 5 - l 00%.
- AC Current (Typ) 0.88A
- DC Voltage 24v
- EMC Immunity EN61000-4-2,3,4,5,6,11 (Surge 4KV)
- Inrush Current 40A
- OUTPUT VOLTAGE 24vDC
- Power Factor (Typ) PF≥0.6
- Rated Current Amp. 4.16A
- Safety Standarts EN61347-1, EN61347-2-13
- Short Circuit Recovers automatically after fault condition is removed
- Voltage Range (VAC) [min]-[max] 180~240VAC
- Voltage Tolerance ±0.5V
- WATTAGE 100 watts
- Working Temp ([min]-[max]) -40~+60°C
| Specifications | |
| Dimensions | Length 230 mm Width 70 mm Height 46 mm |
| Dimmable | Yes |
| IP Rating | IP66 |
| Name | 100w Mains Dimmable TRIAC LED Driver |
| Product Code | LDD-IP100/24 |
| Type | LED Driver |
| Voltage | 24V |
| Warranty | 1 Year |
Here are two helpful guides to aid in the selection of correct aluminium profile for your LED lighting strip and also for the selection of the correct LED Driver.
Click here for Aluminium profile guide
Click here for guide to choosing correct LED Driver for your Teucer LED strip lighting
Teucer UK Ltd was founded in May 2012, with a vision of helping the lighting industry to adapt to the LED lighting revolution. They are a London based, LED lighting distributor. Their range offers LED strip for both domestic and commercial applications. They are committed to the environment and energy efficiency by supporting companies to reduce their energy costs and carbon emissions.
Delivery: 1 - 2 business days.
Free UK Shipping
Free on all orders over £150 ex VAT.
AOM Lighting recommends that all lighting should be installed by a registered NICEIC electrician.
-
- Product Code: LDD-IP100/24
- Availability: Sold Out
- £82.20
- Ex Tax: £68.50
Sold Out
