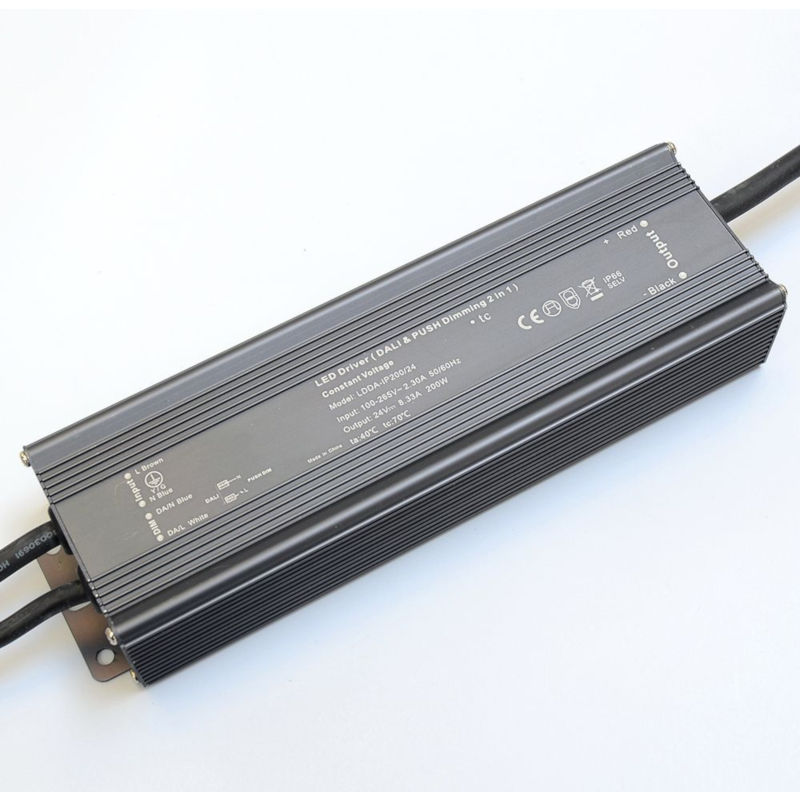

TEUCER 200W DALI Dimmable LED Driver Constant Voltage IP66 24VDC

Name: TEUCER 200W DALI Dimmable LED Driver Constant Voltage IP66 24VDC
Brand: Teucer LED
SKU: LDDA-IP200/24
Price: 144.6 GBP

Sold Out

Click Image for Gallery

Dali Dimmable LED Driver 200W

Technical specification

Order Code LDDA-IP200/24
Output Rated Power 200W
Rated Current 8.33A
Output Voltage 24V DC
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±2%
Input Voltage Range 100~265VAC
Frequency Range 47~63Hz
Efficiency (Typ) 88.4% at 230V AC (Full loading)
Power Factor (Typ) 0.97 at 230V AC (Full loading)
THD (Typ) <20% at 230 V AC (Full loading)
AC Current (Max) 2.3A
Inrush Current (Typ) 56A at 230V AC
Leakage current <0.5mA
Protection Overload ≤ 120%
Short circuit Recovers automatically after condition is removed
Over temperature 100°C ±10°C Recovers automatically after cooling
Protection Class I
Environment Working Temp -40~+60°C (refer to the derating curve)
Working Humidity 20~95%RH, non-condensing
Ingress Protection IP66 waterproof
Storage Temp / Humidity -40~+80°C, 10~95%RH
TEMP. coefficient ±0.03%/°C(0-50°C)
Vibration 10~500Hz, 5G 10 min./1 cycle, period for 60min. each along X, Y, Z axes

Specifications
Dimensions	245x70x43mm (L×W×H)
Dimmable	Dali
IP Rating	IP66
Max Wattage	200W
Product Code	LDDA-IP200/24
Type	LED Dimmable Dali Driver
Voltage	24VDC

Here are two helpful guides to aid in the selection of correct aluminium profile for your LED lighting strip and also for the selection of the correct LED Driver.

Click here for Aluminium profile guide

Click here for guide to choosing correct LED Driver for your Teucer LED strip lighting
