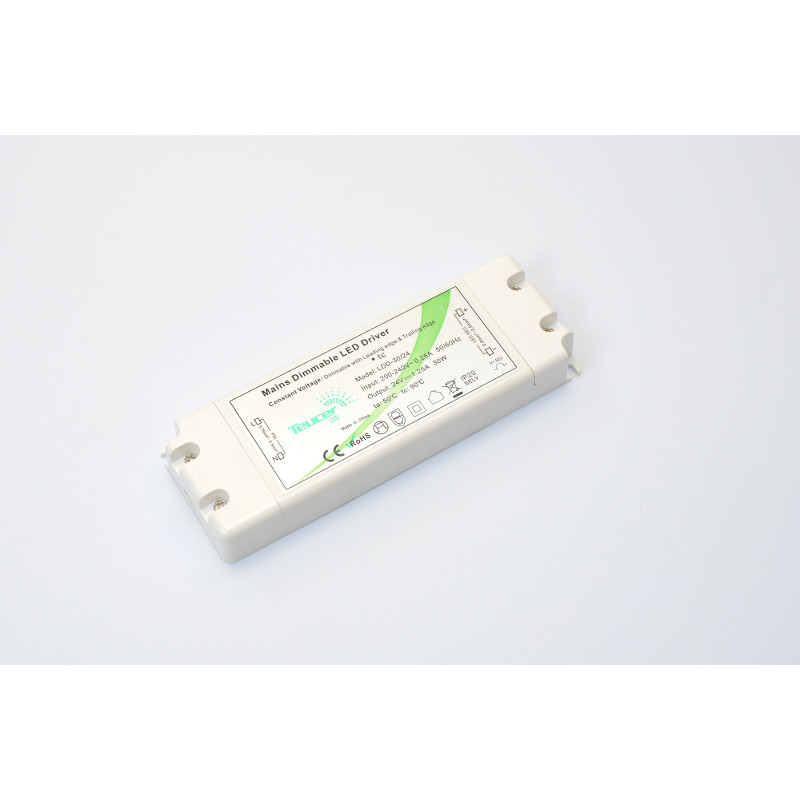

TEUCER 30w Mains Dimmable TRIAC LED Driver LDD-30/24

Name: TEUCER 30w Mains Dimmable TRIAC LED Driver LDD-30/24
Brand: Teucer LED
SKU: LDD-30/24
Price: 31.8 GBP

Sold Out

Click Image for Gallery

30w Mains Dimmable TRIAC LED Driver

Technical specification

Order Code LDD-30/24(N)
Output Rated Power 30W
Rated Current 1.25A
Output Voltage 24V DC
Voltage Tolerance ±0.5V
Input Voltage Range 200~240VAC
Frequency Range 47~63Hz
Efficiency (Typ) 79%
Power Factor PF≥0.97/200-240VAC(Full loading)
AC Current (Typ) 0.25A
Inrush Current (Max) 30A (50% Ipeak Twidth=90μs) 230VAC
Protection Overload ≤ 120%
Short circuit Recovers automatically after condition is removed
Environment Working Temp -40~+70°C
Working Humidity 20~90%RH, non-condensing
Ingress Protection IP20 non-waterproof
Storage Temp / Humidity -40~+80°C, 10~95%RH
Safety & EMC Safety Standards (LVD) EN61347-2-13:2014/A1:2017, EN61347-1:2015, EN 62493:2015
Withstand Voltage I/P-O/P:3.75KVAC
Isolation Resistance I/P-O/ P:100MΩ / 500VDC / 25°C / 70%RH
EMC Emission and Immunity EN 55015:2013/A1:2015, EN 61547:2009, EN 61000-3-2:2014, EN 61000-3-3:2013
Dimming Dimming Type PWM dimming
Minimum Load to achieve optimum dimming of 5-100% 10%, 3W
Dimmer Leading and Trailing Edge
Note Consult the Derating Curve for load guidance.
Mechanical Size 155x54x20mm (L×W×H)
Weight 0.21Kg

Specifications
Dimensions	Length 155 Width 54 Height 20mm
Dimmable	Yes
IP Rating	IP20
Max Wattage	30W
Product Code	LDD-30/24
Type	LED Driver
Voltage	24V DC
Warranty	5 Year
