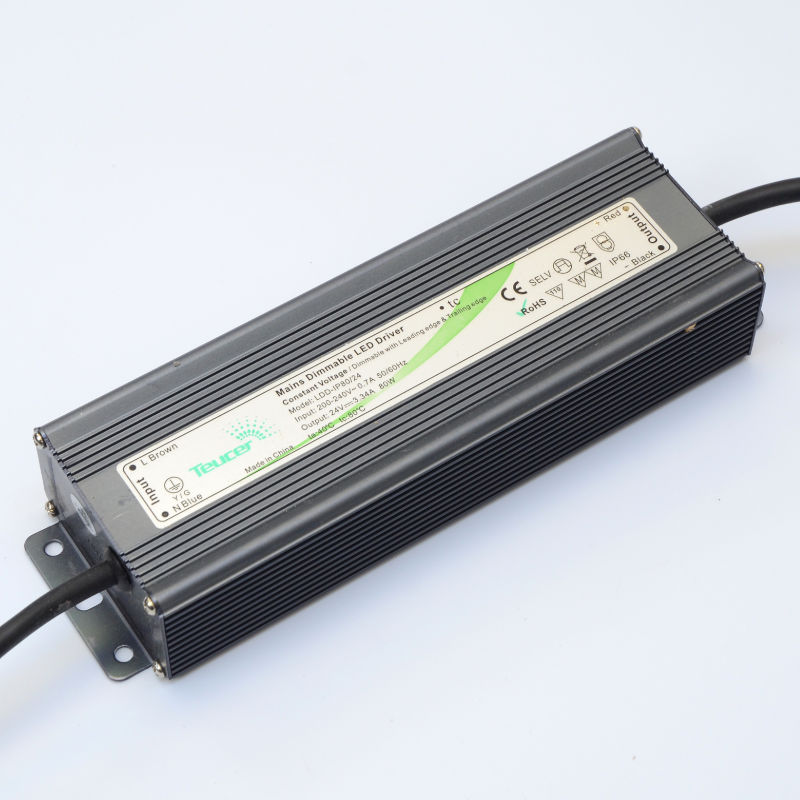

TEUCER 80w Mains Dimmable TRIAC LED Driver LDD-IP80/24(N)

Name: TEUCER 80w Mains Dimmable TRIAC LED Driver LDD-IP80/24(N)
Brand: Teucer LED
SKU: LDD-IP80/24(N)
Price: 68.4 GBP

Discontinued

Click Image for Gallery

80w Mains Dimmable TRIAC LED Driver

Technical specification

Order Code LDD-IP80/24(N)
Output Rated Power 80W
Rated Current 3.34A
Output Voltage 24V DC
Voltage Tolerance ±0.5V
Input Voltage Range 200~240VAC
Frequency Range 47~63Hz
Efficiency (Typ) 83%
Power Factor PF≥0.97/200-240VAC(Full loading)
AC Current (Typ) 0.7A
Inrush Current (Max) 30A (50% Ipeak Twidth=200μs) 230VAC
Protection Overload ≤ 120%
Short circuit Recovers automatically after condition is removed
Environment Working Temp -40~+60°C
Working Humidity 20~90%RH, non-condensing
Ingress Protection IP66 waterproof
Storage Temp / Humidity -40~+80°C, 10~95%RH
Safety & EMC Safety Standards (LVD) EN61347-2-13:2014/A1:2017, EN61347-1:2015,EN 62493:2015, VDE 0710-14:1982
Withstand Voltage I/P-O/P:3.75KVAC
Isolation Resistance I/P-O/ P:100MΩ / 500VDC / 25°C / 70%RH
EMC Emission and Immunity EN 55015:2013/A1:2015, EN 61547:2009, EN 61000-3-2:2014, EN 61000-3-3:2013
Dimming Dimming Type PWM dimming
Minimum Load to achieve optimum dimming of 5-100% 10%, 8W
Dimmer Leading and Trailing Edge
Note Consult the Derating Curve for load guidance.
Mechanical Size 230x70x43mm (L×W×H)
Weight 1.1Kg

Specifications
Dimensions	Length 230 Width 70 Height 43mm
Dimmable	Yes
IP Rating	IP20
Max Wattage	80W
Product Code	LDD-IP80/24(N)
Type	LED Driver
Voltage	24V DC
Warranty	5 Year
