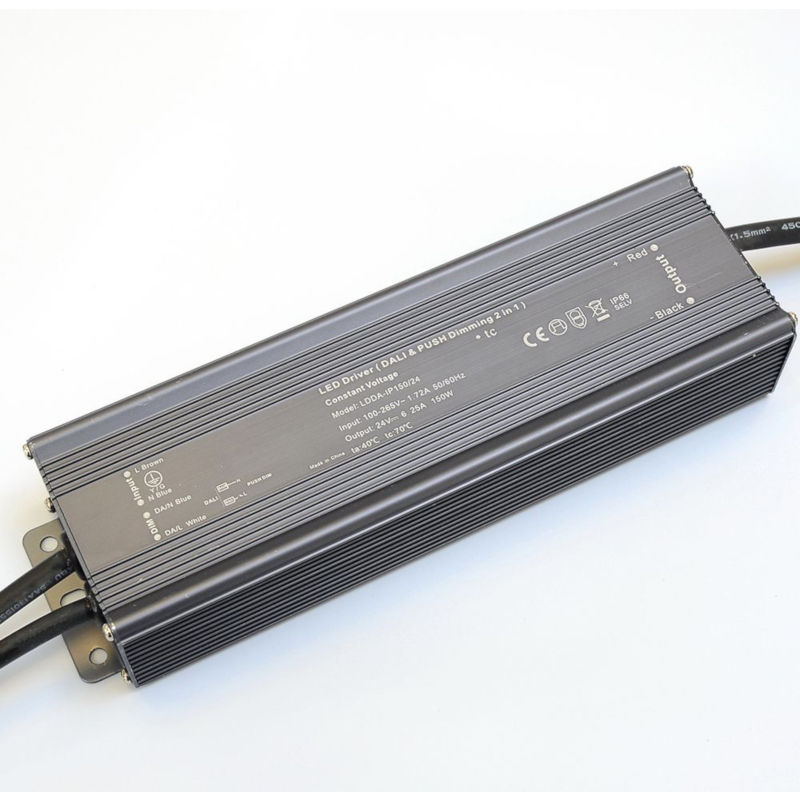

Dali Dimmable LED Driver 150W

Technical specification

• Order Code LDDA-IP150/24
• Output Rated Power 150W
• Rated Current 6.25A
• Output Voltage 24V DC
• Voltage Tolerance ±0.5V
• Voltage Regulation ±0.5%
• Load Regulation ±2%
• Input Voltage Range 100~265VAC
• Frequency Range 47~63Hz
• Efficiency (Typ) 88.2% at 230V AC (Full loading)
• Power Factor (Typ) 0.97 at 230V AC (Full loading)
• THD (Typ) <20% at 230 V AC (Full loading)
• AC Current (Max) 1.72A
• Inrush Current (Typ) 56A (50% Ipeak Twidth=640μs) at 230V AC
• Leakage current <0.5mA
• Protection Overload ≤ 120%
• Short circuit Recovers automatically after condition is removed
• Over temperature 100°C ±10°C Recovers automatically after cooling
• Protection Class I
• Environment Working Temp -40~+60°C (refer to the derating curve)
• Working Humidity 20~95%RH, non-condensing
• Ingress Protection IP66 waterproof
• Storage Temp / Humidity -40~+80°C, 10~95%RH
• TEMP. coefficient ±0.03%/°C(0-50°C)
• Vibration 10~500Hz, 5G 10 min./1 cycle, period for 60min. each along X, Y, Z axes
